Simple and Effective ESD Testing Techniques for Higher Reliability


We’ve all experienced the effect of electrostatic discharge at some point in our lives, the most common case being a tingling sensation one feels after touching a door knob or any metal surface. When the body is electrically isolated from earth, like with a pair of rubber sandals, a few foot slides can make it charged. This charge is maintained until the body comes in contact or in close proximity with a conductor that serves as a discharge path. If the body would feel a jolt, the electromotive potential induced is in the order of 4 kV. 4 kilovolts sure sounds like a scary figure but the body’s resistance is fortunately within the Mohm range. Thus, the effective power isn’t enough to cause any internal injury. I remember trying to measure my body’s resistance waaaaay back when I was in college, during a laboratory class. I was goofing around, wondering what the multimeter would read when I placed the terminals in between the palms of my hands, and I indeed got unstable readings in the hundreds of kohms and Mohm range. Unsatisfied with my foolishness, I tried placing the terminals between the ends of my forehead [in an attempt to measure the resistance of my brain], but the readings remained the same. I finally stopped when my colleagues started giving me queer looks. Hum.

Anyway, this same phenomenon does not only vex the lay man but the design engineer too. Over the decades, a variety of methods have been tested and implemented to mitigate the consequences of ESD (more on these later). The need to regulate these effects is reflected by the passing of MIL-STD-1686 [to my surprise, these 4 numbers matched my employee ID, what are the odds?], created by the DOD aimed at minimizing effects of ESD on parts, assemblies, and equipment through a control program. We are also concerned with MIL-STD-750 and MIL-STD-883 where various test methods and models are defined for semiconductors. Document copies of these standards are publicly available through MIT. I went through them and fell asleep maybe after the 400th page or so. After a few more pages, I finally found the section of interest at page 512 – method 3015.7 “Electrostatic Discharge Sensitivity Classification”, which occupied a modest 5 pages out of a 700 page PDF file.

How ESD Affects Semiconductor Devices and Circuits



Before delving into complex testing procedures, it would help intuition to know what is happening when semiconductors are subjected to ESD. The manufacture of semiconductor circuits does not only involve components that were intentionally made, but also those that come consequently from the construction and architecture of the circuit. These parasitic components play crucial roles in circuit design and analysis, and usually effectuate the malfunction of an IC. Some examples would be the parasitic capacitances between junctions that form an electrical short to high frequency components and the parasitic thyristors between transistors that form an electrical short when activated. Figure 1 shows one such parasitic thyristor in an inverter configuration.



Figure 1. NMOS and PMOS transistors form a parasitic thyristor that can be triggered when subjected to ESD conditions. (All images courtesy of Wikipedia)



It is worth noting that the parasitic transistors [which form a parasitic thyristor] have very low current gains and cannot be turned on by very short pulses such as line reflections on the circuit board [they exhibit a comparatively low transit frequency]. However, ESD that lasts even for a few tens of nanoseconds can trigger the entire parasitic thyristor due to a flooding of charge carriers. In earlier generations of CMOS circuits, a simple rapid rise in the supply voltage would be a sufficient trigger condition. The thyristor will also latch when the IC is subjected to a high source of ionizing radiation.

Latch-up in a parasitic thyristor can be prevented by increasing the distance between components. Doing this reduces both current gain and triggering sensitivity. However, there is a trade-off between the maximum distance between components and the need to design transistors with characteristics similar to each other (because transistors in current mirrors and differential pairs need to be identical for ideal current “mirroring”). Another workaround is adding guard rings to critical parts of a circuit.



Standardized ESD Models Used by the Industry


There are many established models in testing the reliability of semiconductor circuits and devices against ESD. In this section, I will just mention a few of the most popular models. Perhaps the most pervasive are the human body model, the machine model and the charged device model.

The human body model is, as the name implies, a model that simulates the ESD of a human being that takes a path from the finger through the DUT and then to ground. The test circuit is illustrated below [Figure 2].



Figure 2. Test circuit for the Human Body Model. [Schematic drawn using BSCH3V]

The capacitor in the test circuit is charged by a high voltage supply through a high-value resistor. The standard supply voltage is +/- 2 kV, the high-value resistance at 1-10Mohms, and the capacitance at 100 pF [with 10% tolerance and 1012 minimum insulation resistance]. A high-voltage relay breaks the connection to the supply and creates a path for discharge to the DUT. The discharge resistance, representing the resistance from the metal contact to the DUT, is at 1.5 kohms [with 1% tolerance]. These are just common values though. In reality, the human body’s capacitance swings from 150pF to 500pF [affected by contact area and shoe size]. Also, the discharge path should be characterized by a lower resistance given that metallic conductors are the more common medium. These inconsistencies are addressed by Standard IEC 802-2, recommending a capacitance of 150pF and a discharge resistance of 330 ohms. However, this standard does not directly involve integrated circuits.


The definition for the impressed current waveform is also stringent for the HBM[Figure 3].



Figure 3. Current waveform for the Human Body Model. [From MIL-STD-883E: Figure 3015-2, p. 6 of Method 3015.7]

A rise time of less than 10 ns should be satisfied with a peak current not exceeding 10% of the corresponding stepping current [please see the copy of the standard for more details]. This definition is of major interest because ESD protection circuits aren’t instantaneously driven to conduction and require a certain amount of delay also in the order of a few nanoseconds.

If you are looking for a testing method with higher peak current levels, a faster rise time, and more voltage spikes (than what the Human Body Model offers) then IEC 61000-4-2 offers just that. It does so because it is designed for testing in an end-user environment. Some ESD protection mechanisms are placed in integrated circuits just to survive the assembly and integration process towards a finished product. IEC61000-4-2 takes the testing to the next level by ensuring that the finished products will survive ESD under normal operation.

Another ESD model, the machine model, has been downgraded by 3 standards bodies and is no longer a requirement in the automotive industry. However, some are still using this model so it is worth mentioning here.

The machine model is used to simulate discharge from moving insulators [usually plastic bearings] within machinery or other similar equipment. Below is a figure for the model’s test circuit [Figure 4].



Figure 4. Test circuit for the machine model. [Schematic drawn using BSCH3V]

The configuration is similar to the HBM except for the discharge resistor which was replaced by an inductor. This is because charged metal parts in machines have very low resistances. A well-known consequence of not having a discharge resistor is uncontrolled current [aside from those that function as bleeder resistors perhaps?]. No control over current transients results in unknown rise times that allow bypass of ESD protection and destruction of the DUT [at voltages near 500V]. This is one reason why the machine model has lost its popularity.

Lastly, the charged device model arises due to ESD during PCB mounting of the integrated circuit. It took a tedious investigation to prove this phenomenon, where the integrated circuit gains charge as it slides along the plastic rails of the production line and discharges upon touchdown on the PCB. The equivalent circuit for this model is shown below [Figure 5].

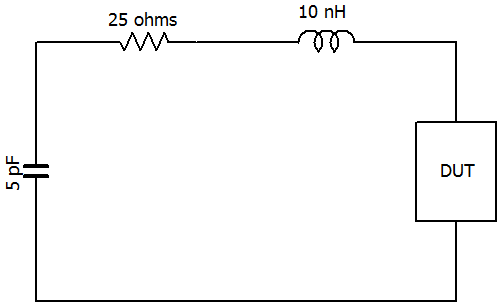

Figure 5. Equivalent circuit for the charged device model. [Schematic drawn by BSCH3V]

The values for the capacitance and inductance are quite small since ICs, like the best things in life, come in small packages. The setup is quite complex so a summary is well in order. The flat side of the DUT is laid on a metal plate, with its pins facing upwards. The DUT is then charged using a moving test probe through the pins and discharged with a second test probe. Studies show that if the DUT survives a charging voltage of around 1 kV after discharge, then the probability of failure in the assembly line is infinitesimal. Studies also show that there is no correlation between results from the charged device model tests and the human body and machine model tests. I have no means of proving the claims of these studies and the source is obscure so don’t take my word for those last 2 sentences.


Protection against the Adverse Effects of ESD


There are many ways to design an ESD protection circuit depending on application. Common sense dictates placing such protection in parallel with the DUT rather than in series. One common technique is to employ shunt clamping diodes. The diode’s fast switching action, as well as the simplicity and economy of the circuit are attractive. Below is a common implementation of ESD diodes at the terminals of an IC [Figure 6].



Figure 6. ESD protection circuit composed of clamping diodes. [Schematic drawn by BSCH3V]


ESD diodes are internal. The upper diode is forward biased when VIN is greater than VCC plus the diode’s threshold voltage while the lower diode is forward biased when VIN is more negative than the negative of the diode’s threshold voltage. The lower diode also prevents a short between the input and the collector/drain of the first input transistor [usually connected to VCC]. This happens because the upper parasitic transistor discussed earlier is no longer in cut-off. This is why in most datasheets, you will see the range of the allowed negative input voltage to be only around -0.3V to -1V. [This used to puzzle me too, why can I bias the input at significant positive magnitudes, but not at a mere -0.7V? The analysis above enlightened me.] These ESD diodes also serve a bonus function. They can be used to subject the DUT at a more accurate temperature in the absence of a type T thermocouple by utilizing the trend of their threshold voltage with respect to temperature.

Problems arise when the ESD diode’s slew rate doesn’t meet the rise time of the ESD pulse. In effect, the diode doesn’t turn on. When they do, heat from conducting diodes can damage adjacent components [higher frequency components contain higher energies]. Also, such diodes may break down under high voltage ESD transients. Such hazards call for extra measures like adding a second stage ESD protection circuit [Figure 7].



Figure 7. Two-stage ESD protection circuit for higher voltages. [Schematic drawn by BSCH3V]

In this two-stage ESD protection circuit, there are 2 transistors that help short the positive high voltage ESD transient to ground, while the diodes take care of negative excursions. The MOS helps drive the base current of the PNP transistor at even higher magnitudes of positive voltage.

The above circuits are for internal implementation. There are also external circuits designed for extreme cases such as nuclear EMPs from detonated atom bombs above the atmosphere and lightning EMPs from lightning strikes during a thunderstorm. In these circuits, TVS diodes [transient voltage suppression diodes] and buffers [having internal ESD diodes themselves] are implemented with additional stages included. The working principle is similar to the ESD diode discussion above, except now the diodes have higher power ratings as the stages go outward. For a 3 stage external ESD protection circuit, one can expect voltage limiters that can carry currents in the range of hundreds of amps, followed by transient voltage suppressors, then ordinary ESD diodes all connected to earth ground.

You may be asking, can’t we use transistors as the limiting components of an ESD protection circuit? I have come by that kind of circuit, which was designed by Texas Instruments. They constructed it for applications that can’t wait for the input voltage to exceed VCC plus the threshold voltage [the chip may operate abnormally at, like, VCC+0.1V or VCC+0.05V, as in high precision op-amps].

Do-it-Yourself ESD Testing Techniques


[Warning: This section is written as a spoof, so the author has no claims on the effectiveness and safety of the methods described below.]

Who needs to shell out money for an ESD gun or an MK ESD automatic tester to test your product against ESD? With these nifty techniques, you won’t have to spend a dime [because these methods are downright straightforward].

1. Walking on a carpet method

For this, you’ll need your living room carpet, some rubber sandals, and yourself. Place the DUT on a flat table. Settle yourself in an upright standing position on the carpet. Slide your left/right foot, then the next, following a circular path. After skidding 50 times, quickly touch the pins of your DUT on the table. Take some anti-dizziness pills and check if the DUT is still working. Kudos if your IC hasn’t been damaged.

2. Dancing on a carpet method

A variation of the first method, which is more enjoyable in my opinion because it doesn’t make you giddy. Ever wanted to dance to some music on rubber sandals? In this method, you can work while grooving to your favorite songs. Just replace the 50 skids in the previous methods with a dance to a song. My choice selections are “What does the fox say?” and “Macarena”. For experienced users of this method, I highly recommend Michael Jackson’s “Thriller” and Mchammer’s “You Can’t Touch This”, guaranteed to ensure your ICs immunity to ESD. Kudos if your IC hasn’t been damaged yet.

3. The balloon and comb method

Purchase a rubber balloon for birthdays [a hot air balloon too if possible, we’ll need it for the next method], a vanity mirror, and a plastic comb if you don’t have one. Sit yourself comfortably in front of the board and DUT. Comb your hair while looking in the vanity mirror then smile. After admiring your gorgeous self, set the cracked mirror aside and start rubbing the comb on the balloon, maybe a hundred slides will do. Comb the pins of your DUT afterwards, and then check if it is still working. Kudos if your IC hasn’t been damaged.

4. The Thor method [Warning: extreme caution advised]

This method, in spite of having some hazards and limitations, is a favorite of mine because it absolutely guarantees that your IC is really ESD proof. I haven’t had an IC that was tested with this method fail from ESD ever! Sadly, it can only be done during a thunderstorm [or when you are feeling really really lucky]. If you observe nimbus clouds in the sky, head for the nearest open field with your board and DUT. Don’t forget to bring a bucket of saltwater and a hot air balloon [optional].

Upon arrival, locate yourself to the middle of the open field and pour the bucket of saltwater over you and your board [you can remove your clothes if you want to keep them dry]. Firmly hold the board in your hands and place them overhead. Wait until lightning strikes the board. When it does, rush back to your test bench and check if the DUT is still working. Kudos if your IC hasn’t been damaged.

If you have been waiting for an insufferably long time, the hot air balloon then comes in handy. Pour salt water over you, the board, and the balloon. Pump up the balloon with hot air and ride it to the dark cloudy skies. Hold out the board and wait until it gets struck by lightning. Jump off the balloon and rush back to your test bench. Check if the DUT is still working. Kudos if your IC hasn’t been damaged


Developing Better ESD models and Improving ESD Protection Circuits


The burden on ESD testing may be lessened if we continue developing devices that counteract ESD. Reflecting on the matter, what else can we do? It is interesting to brainstorm on solutions to these kinds of problems. Anything we come up with can also serve as stepping stones to other solutions. I once had an idea of using a small strip of wire located near the power line interface to detect huge voltage anomalies before they enter the IC terminals, though there is the problem of latency. Can you think of any possible solutions that can help in our fight against ESD?
