Mobile crushers are often referred to as 'mobile crushing plants'. They are track-mounted crushing machines which, thanks to their mobility, can maximise productivity and reduce operating costs - while increasing safety and reducing environmental impact.
The concept of mobile and semi-mobile crushers has been around for a long time, but for years many machines were very heavy and moving them required thoughtful planning. As result, the crushers that were supposed to be mobile were seldom relocated and tended stay put in permanent facilities.
Nowadays, the weight of mobile crushers has decreased considerably, and crushing as well as mobility properties improved notably. Mobility is not substitute for effective crushing anymore, and tracked mobile crushers meet the same basic criteria as stationary plants.
The ability to crush also the largest lumps to the desired cubicity at the desired rate are all 'must-have' rather than 'nice-to-have' attributes.
The basic components of mobile crushers are almost the same as for stationary ones, but with the added advantage of complete mobility - even up slopes as steep as 1:10 incline.
Mobile cone crushers
Mobile cone crushers are traditionally used as secondary, tertiary, and quaternary crushers. However, if the grain size of the processed material is small enough by nature, then they can also operate at the first stage of the crushing process.
Specification of mobile cone crusher
Mobile impact crushers
Mobile impact crushers are wide-ranging crushing machines that fall into two distinctive categories according to the crushing technology they use.
Mobile impact crushers have a horizontal impact crushing unit and they are used as primary, secondary, or tertiary crushers.
Specification of mobile impact crusher
Mobile jaw crushers
Popular mobile jaw crushers are generally utilized as primary crushers that reduce the material to smaller sized for further processing.
Specification of mobile jaw crusher
Mobile VSI crushers
Mobile VSI crushers, are equipped with vertical shaft impact crushing unit, and they are extremely efficient in the last stage of the crushing process, producing precisely shaped cubical end products.
Popular mobile VSI crushers are generally utilized as Fine crushers that reduce the material to be sand as 0-6mm for construction material.
Specification of mobile VSI crusher
Mobile screens
Mobile screens, are equipped with vibrating screening unit, and they are extremely efficient in the last stage of the crushing process, separating material to be series of size according to final product requirement.
Specification of mobile screens
Features of mobile crushers
1.Versatility
Can be tailored to fit for any application. Durable wear parts and optimized cavity design enable higher capacity and uptime.
2. Reliability
More than a century of experience in designing, engineering and manufacturing crushers. Persistent quality testing. Premium-quality components.
3.Energy-efficient and better for environment
Advanced engine, hydraulics and power transmission. Better dust and noise reduction. Easy transportation. Less hauling required.
4.Safe and easy to use and maintain
One button process start-and-stop. Real-time diagnostics and easy process optimization. All main languages available. Industry-leading service network.
Mobile crushers combined unit
Each kinds mobile crusher are often used together for primary crushing, fine crushing and screening operations to complete the whole crushing system.
The concept of mobile and semi-mobile crushers has been around for a long time, but for years many machines were very heavy and moving them required thoughtful planning. As result, the crushers that were supposed to be mobile were seldom relocated and tended stay put in permanent facilities.
Nowadays, the weight of mobile crushers has decreased considerably, and crushing as well as mobility properties improved notably. Mobility is not substitute for effective crushing anymore, and tracked mobile crushers meet the same basic criteria as stationary plants.
The ability to crush also the largest lumps to the desired cubicity at the desired rate are all 'must-have' rather than 'nice-to-have' attributes.
The basic components of mobile crushers are almost the same as for stationary ones, but with the added advantage of complete mobility - even up slopes as steep as 1:10 incline.

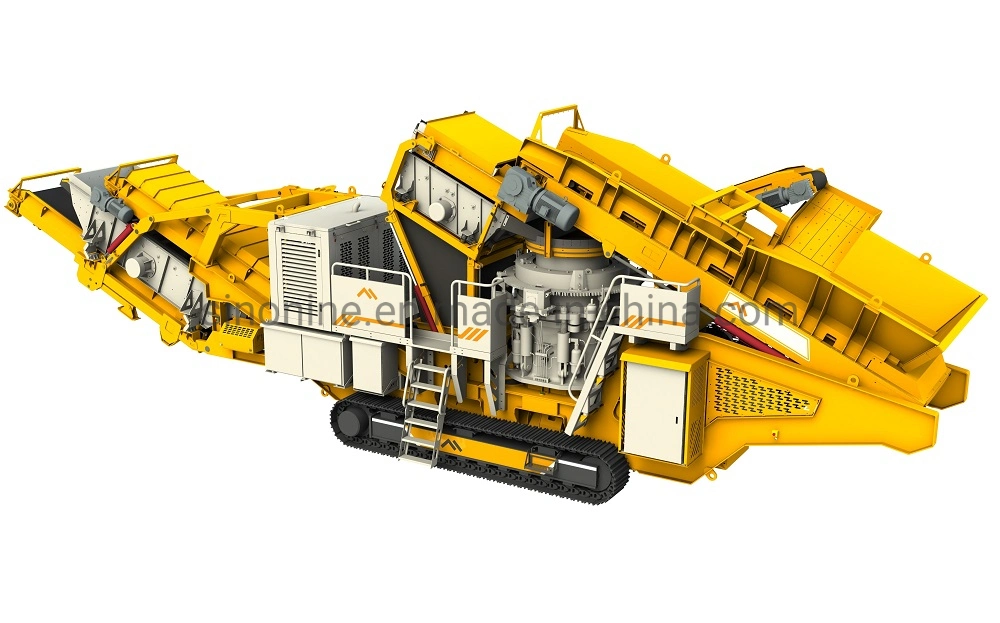

Mobile cone crushers
Mobile cone crushers are traditionally used as secondary, tertiary, and quaternary crushers. However, if the grain size of the processed material is small enough by nature, then they can also operate at the first stage of the crushing process.
Specification of mobile cone crusher
| Item | JC300S | JC300SR | JC300H | JC300HR | |
| Transportation Length(mm) | 13850 | 17850 | 14850 | 17850 | |
| Transportation Width(mm) | 3200 | 3300 | 3200 | 3300 | |
| Transportation Height(mm) | 3800 | 3800 | 3600 | 3600 | |
| Weight(t) | 52 | 57 | 55 | 60 | |
| Total power (Kw) | 328.1 | 337.2 | 328.1 | 337.2 | |
| Capacity(t/h) | 290-495 | 290-495 | 150-430 | 150-430 | |
| Walking speed (Km/h) | 0.8-1 | 0.8-1 | 0.8-1 | 0.8-1 | |
| Vibrating Feeder | Volume(m3) | 4 | 5 | 6 | 7 |
| Height(m) | 2600 | 2600 | 2600 | 2600 | |
| Max. feeding size(mm) | 225 | 225 | 225 | 225 | |
| Capacity(t/h) | 500 | 500 | 500 | 500 | |
| Cone crusher | Type | Single-cylinder | Single-cylinder | Multi-cylinder | Multi-cylinder |
| Discharge size(mm) | 25-54 | 25-54 | 25-54 | 25-54 | |
| Power(Kw) | 250 | 250 | 250 | 250 | |
| Belt conveyors | Main belt height(mm) | 3400 | 3400 | 3400 | 3400 |
| Main belt width(mm) | 1200 | 1200 | 1200 | 1200 | |
| Stacking height(mm) | 3000 | 3000 | 3000 | 3000 | |
| Transfer belt width(mm) | 500 | 500 | 500 | 500 | |
| Return belt width (mm) | 500 | 500 | 500 | 500 | |
| Product belt width(mm) | 1200 | 1200 | 1200 | 1200 | |
| Vibrating screen | Model | 1S1540 | 1S1540 | 1S1540 | 1S1540 |
| Deck layer | 1 | 1 | 1 | 1 | |
| Screen size(mm) | 4000x1500 | 4000x1500 | 4000x1500 | 4000x1500 | |
Mobile impact crushers
Mobile impact crushers are wide-ranging crushing machines that fall into two distinctive categories according to the crushing technology they use.
Mobile impact crushers have a horizontal impact crushing unit and they are used as primary, secondary, or tertiary crushers.
Specification of mobile impact crusher
| Item | SP150R | SP260R(T) | SP350R | SP350R | |
| Transportation Length(mm) | 16600 | 19100 | 19600 | 19600 | |
| Transportation Width(mm) | 3200 | 3200 | 3300 | 3380 | |
| Transportation Height(mm) | 3600 | 3800 | 3800 | 3800 | |
| Weight(t) | 48 | 58 | 64 | 80 | |
| Total power (Kw) | 217.2 | 270.2 | 385.2 | 415.7 | |
| Capacity(t/h) | 100-200 | 160-350 | 250-500 | 400-600 | |
| Walking speed (Km/h) | 0.8-1 | 0.8-1 | 0.8-1 | 0.8-1 | |
| Vibrating Feeder | Volume(m3) | 4 | 5 | 6 | 7 |
| Height(m) | 3800 | 4000 | 4000 | 4000 | |
| Max. feeding size(mm) | 600 | 750 | 800 | 1000 | |
| Capacity(t/h) | 200 | 300 | 400 | 600 | |
| Impact crusher | Model | 1010 | 1214 | 1313 | 1420 |
| Discharge size(mm) | 25-100 | 25-100 | 25-200 | 25-200 | |
| Power(Kw) | 160 | 200 | 315 | 375 | |
| Belt conveyors | Main belt height(mm) | 3000 | 3000 | 3000 | 3000 |
| Main belt width(mm) | 1000 | 1200 | 1200 | 1400 | |
| Stacking height(mm) | 3000 | 3000 | 3000 | 3000 | |
| Transfer belt width(mm) | 500 | 500 | 500 | 500 | |
| Return belt width (mm) | 500 | 500 | 500 | 500 | |
| Product belt width(mm) | 1000 | 1200 | 1200 | 1400 | |
| Vibrating screen | Model | 1S1237 | 1S1540/2S1540 | 1S1540 | / |
| Deck layer | 1 | 1/2 | 1 | / | |
| Screen size(mm) | 3700x1200 | 4000x1500 | 4000x1500 | / | |

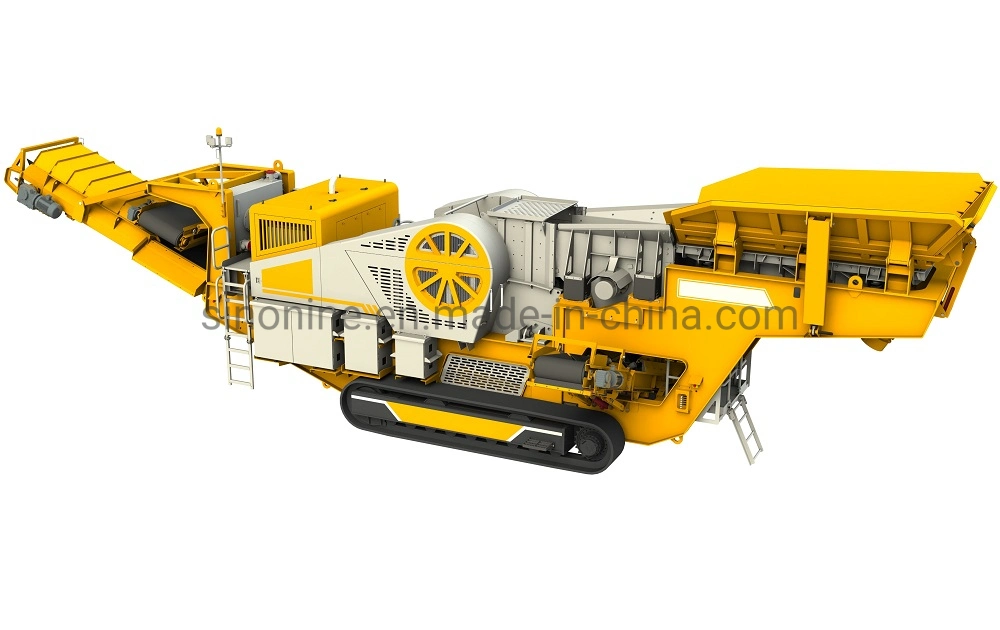

Mobile jaw crushers
Popular mobile jaw crushers are generally utilized as primary crushers that reduce the material to smaller sized for further processing.
Specification of mobile jaw crusher
| Item | SJ150 | SJ260 | SJ350 | SJ550 | |
| Transportation Length(mm) | 12450 | 15200 | 16160 | 17600 | |
| Transportation Width(mm) | 3000 | 3000 | 3000 | 3100 | |
| Transportation Height(mm) | 3500 | 3600 | 3800 | 3800 | |
| Weight(t) | 40 | 50 | 52 | 60 | |
| Total power(Kw) | 106.27 | 152.45 | 152.45 | 197.75 | |
| Capacity(t/h) | 80-335 | 150-500 | 160-570 | 175-600 | |
| Walking speed(Km/h) | 0.8-1 | 0.8-1 | 0.8-1 | 0.8-1 | |
| Vibrating Feeder | Volume(m3) | 4 | 5 | 6 | 7 |
| Height(m) | 3700 | 3800 | 4000 | 4000 | |
| Max. feeding size(mm) | 460 | 560 | 600 | 700 | |
| Capacity(t/h) | 250 | 350 | 450 | 650 | |
| Jaw crusher | Max. feeding size(mm) | 460 | 560 | 600 | 700 |
| Feeding port size(mm) | 930x580 | 1060x700 | 1130x750 | 1200x870 | |
| Discharge size(mm) | 40-175 | 70-200 | 70-200 | 70-275 | |
| Power (kw) | 75 | 110 | 110 | 160 | |
| Belt conveyor | Main belt height(mm) | 3200 | 3200 | 3200 | 3200 |
| Main belt width(mm) | 1000 | 1200 | 1200 | 1400 | |
| Stacking height(mm) | 3000 | 3000 | 3000 | 3000 | |
| Side belt height(mm) | 2500 | 2500 | 2500 | 2500 | |
| Side belt width(mm) | 650 | 650 | 650 | 650 | |
Mobile VSI crushers
Mobile VSI crushers, are equipped with vertical shaft impact crushing unit, and they are extremely efficient in the last stage of the crushing process, producing precisely shaped cubical end products.
Popular mobile VSI crushers are generally utilized as Fine crushers that reduce the material to be sand as 0-6mm for construction material.
Specification of mobile VSI crusher
| Model | JVS1212 | |
| Transportation Length(mm) | 16600 | |
| Transportation Width(mm) | 3200 | |
| Transportation Height(mm) | 3600 | |
| Weight(t) | 48 | |
| Total power (Kw) | 439 | |
| Capacity(t/h) | 100-500 | |
| Walking speed (Km/h) | 0.6-1 | |
| Vibrating Feeder | Volume(m3) | 5 |
| Height(m) | 2500 | |
| Max. feeding size(mm) | 100 | |
| Capacity(t/h) | 500 | |
| VSI crusher | Rotor diameter(mm) | 1212 |
| Rotor thickness (mm) | 220 | |
| Power(Kw) | 400 | |
| Belt conveyors | Main belt length(mm) | 13000 |
| Main belt width(mm) | 1200 | |
| Stacking height(mm) | 3000 | |
| Feeding belt width(mm) | 1200 | |
| Feeding belt length (mm) | 5000 | |
Mobile screens
Mobile screens, are equipped with vibrating screening unit, and they are extremely efficient in the last stage of the crushing process, separating material to be series of size according to final product requirement.
Specification of mobile screens
| Item | SDS3515 | SDS3618 | SDS5618 | SDS2618 | |
| Transportation Length(mm) | 13800 | 17440 | 18440 | 18370 | |
| Transportation Width(mm) | 2900 | 3050 | 3050 | 3200 | |
| Transportation Height(mm) | 3700 | 3700 | 4060 | 3550 | |
| Weight(t) | 34 | 38 | 45 | 40 | |
| Total power (Kw) | 59.8 | 74.5 | 108 | 59.5 | |
| Capacity(t/h) | 100-220 | 200-350 | 200-350 | 280-680 | |
| Walking speed (Km/h) | 0.8-1 | 0.8-1 | 0.8-1 | 0.8-1 | |
| Vibrating Feeder | Volume(m3) | 3 | 3 | 3 | 3 |
| Height(m) | 2200 | 2200 | 2000 | 2500 | |
| Max. feeding size(mm) | 200 | 200 | 200 | 200 | |
| Capacity(t/h) | 300 | 300 | 400 | 500 | |
| Vibrating screen | Screen layer | 3 | 3 | 4 | 2 |
| Screen width | 1500 | 1800 | 1800 | 1800 | |
| Screen length | 5000 | 6000 | 6000 | 6000 | |
| Belt conveyors | Main belt width (mm) | 1000 | 1000 | 1000 | 1000 |
| Bottom belt width(mm) | 1000 | 1000 | 1000 | 1000 | |
| Transfer belt width(mm) | 500 | 500 | 500 | / | |
| 1# side belt width (mm) | 500 | 500 | 500 | 800 | |
| 2# side belt width (mm) | 650 | 650 | 650 | 800 | |
| 3# side belt width (mm) | 650 | 650 | 650 | / | |
Features of mobile crushers
1.Versatility
Can be tailored to fit for any application. Durable wear parts and optimized cavity design enable higher capacity and uptime.
2. Reliability
More than a century of experience in designing, engineering and manufacturing crushers. Persistent quality testing. Premium-quality components.
3.Energy-efficient and better for environment
Advanced engine, hydraulics and power transmission. Better dust and noise reduction. Easy transportation. Less hauling required.
4.Safe and easy to use and maintain
One button process start-and-stop. Real-time diagnostics and easy process optimization. All main languages available. Industry-leading service network.
Mobile crushers combined unit
Each kinds mobile crusher are often used together for primary crushing, fine crushing and screening operations to complete the whole crushing system.
